How Annular Grouting Restores Failing Pipelines

Annular grouting restores failing pipelines by filling the annular space between damaged host pipes and new liner pipes with specialized grout, reinforcing structural integrity, sealing leaks, and stabilizing surrounding soils without requiring complete pipeline replacement or extensive excavation.
Aging pipeline infrastructure throughout the United States faces deterioration from corrosion, soil movement, chemical exposure, and decades of service stress. Traditional replacement methods require extensive excavation that disrupts communities, damages surface infrastructure, and costs significantly more than rehabilitation approaches that extend pipeline service life while maintaining functionality.
Annular grouting provides a proven solution for restoring failing pipelines by reinforcing the connection between existing infrastructure and protective liner systems. Professional grouting services apply this technique to municipal water and sewer systems, industrial process pipelines, and utility infrastructure requiring rehabilitation without the disruption and expense of complete replacement.
Key Takeaways
- Annular grouting fills the gap between damaged host pipes and new liner pipes with specialized grout that bonds both surfaces, creating a composite structure stronger than either component alone while preventing continued deterioration of the original pipeline through complete void elimination.
- The rehabilitation process minimizes excavation requirements compared to pipeline replacement, reducing surface disruption, traffic impacts, and restoration costs while enabling continued service in adjacent pipeline sections, making it ideal for pipelines beneath roads, buildings, and sensitive environmental areas.
- Material selection between cementitious grout for strength and cellular grout for flowability depends on specific project requirements including annular space dimensions, access points, injection distances, and structural load requirements, ensuring optimal performance for each unique pipeline rehabilitation application.
- Structural reinforcement from annular grouting prevents soil settlement and surface collapse by transferring loads from deteriorated host pipes to composite pipe-liner-grout systems while stabilizing surrounding soils through void filling, protecting roadways and infrastructure above buried pipelines from damage.
- Cost-effectiveness compared to complete pipeline replacement makes annular grouting attractive for municipalities and utilities managing aging infrastructure with limited budgets, typically costing 30-60% less than replacement while providing 20-30+ years of additional service life.
- Precise injection procedures including pressure monitoring, flow rate control, and strategic staging ensure complete annular space filling without trapped air pockets or incomplete coverage that could compromise structural integrity, requiring professional expertise and specialized equipment for reliable results.
Understanding Annular Space and Pipeline Failure
Pipeline rehabilitation through annular grouting requires understanding how pipelines fail and why the annular space becomes critical to restoration success.
Pipeline Deterioration Mechanisms
Pipelines fail through multiple mechanisms that compromise structural integrity and service reliability over time.
Corrosion damage weakens pipe walls from chemical reactions with transported fluids, groundwater, or surrounding soils. Metal pipelines corrode from inside through contact with water chemistry or wastewater constituents, while external corrosion results from soil conditions and stray electrical currents. Concrete pipelines deteriorate from sulfuric acid attack in sewer systems or aggressive groundwater chemistry.
Joint separation creates leaks and structural weaknesses. Pipelines constructed from individual pipe sections joined with gaskets, cement, or mechanical connections experience joint failures as materials age, ground settles, or external forces cause movement. Separated joints allow infiltration of groundwater into sewer systems or exfiltration of sewage into surrounding soils.
Structural cracks develop from ground movement, surface loads, or internal pressure fluctuations. Settlement, seismic activity, heavy vehicle traffic, and nearby construction create stresses that exceed pipeline structural capacity, resulting in longitudinal or circumferential cracks compromising pipeline integrity.
Root intrusion damages sewer lines as trees and shrubs seek moisture and nutrients. Roots penetrate joints and cracks, expanding gaps and obstructing flow while accelerating structural deterioration through continued growth pressure.
Failure Mechanism | Primary Causes | Infrastructure Impact | Without Rehabilitation |
Corrosion | Chemical exposure, age, soil conditions | Wall thinning, leaks, collapse | Complete failure, contamination |
Joint Separation | Settlement, aging materials, movement | Infiltration, exfiltration, blockages | System capacity loss, environmental damage |
Structural Cracks | Ground movement, loading, pressure | Leaks, reduced strength, collapse risk | Progressive failure, surface damage |
Root Intrusion | Vegetation, existing damage, moisture | Blockages, accelerated deterioration | Complete blockage, emergency repairs |

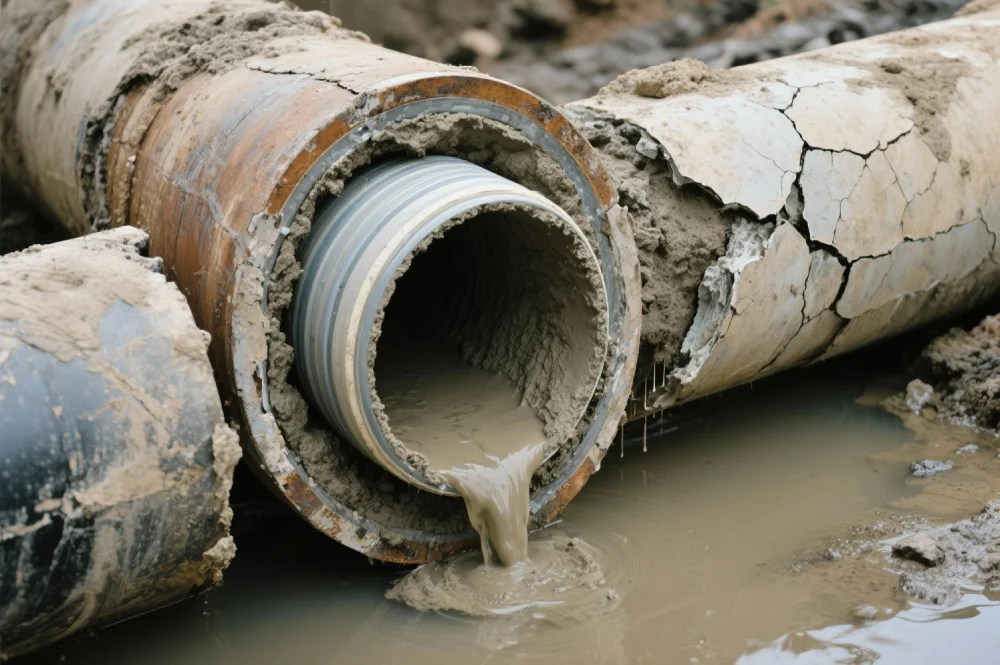

Annular Space Function in Rehabilitation
The annular space between host pipe and liner serves critical functions during and after pipeline rehabilitation.
Liner installation clearance requires sufficient space for liner insertion. Pipelines receive liners slightly smaller in diameter than the host pipe interior, creating an annular gap typically ranging from 0.25 inches to several inches depending on pipe size and liner type.
Structural load transfer depends on grout filling the annular space. Without grout support, liners might buckle or collapse under external soil and traffic loads. Grout creates a composite structure distributing loads between host pipe, grout, and liner components.
Void elimination prevents future problems. Empty annular space allows soil migration, groundwater infiltration, and potential liner damage from point loading. Complete grout filling eliminates these risks while stabilizing surrounding soils.
Corrosion protection results from grout encapsulation. Filling the annular space with grout prevents water and oxygen contact with deteriorated host pipe surfaces, stopping further corrosion and extending overall system service life.
Assessment Before Rehabilitation
Successful annular grouting begins with comprehensive pipeline evaluation determining rehabilitation feasibility and approach.
Pre-rehabilitation assessment includes:
- Video inspection documenting pipe condition, damage extent, and obstructions
- Structural analysis evaluating remaining strength and load-bearing capacity
- Groundwater evaluation determining water table levels and infiltration rates
- Soil investigation identifying surrounding ground conditions and stability
- Access point identification locating suitable locations for liner insertion and grout injection
- Service interruption planning minimizing impacts to system users
Annular Grouting Process and Procedures
Systematic procedures ensure complete annular space filling and reliable long-term performance of rehabilitated pipeline systems.
Liner Installation Methods
Various liner types require specific installation approaches affecting subsequent grouting procedures.
Cured-in-place pipe (CIPP) installations involve pulling or inverting resin-saturated fabric liners through host pipes. After positioning, steam or hot water cures the resin, creating rigid liners conforming to host pipe geometry. CIPP installations typically create smaller annular spaces than other methods.
Slip lining involves pulling or pushing prefabricated pipe sections through host pipes. This method works for larger diameter pipelines where access allows insertion of continuous or joined liner sections. Slip lining creates larger, more consistent annular spaces facilitating grout injection.
Spiral wound liners form from interlocking plastic strips wound inside host pipes. A separate seal coat may be applied after winding. These liners create variable annular spaces depending on host pipe irregularities and liner profile geometry.
Fold-and-form liners arrive in temporary deformed profiles allowing insertion through small access points. After positioning, pressure or temperature returns liners to circular profiles fitting tightly against host pipe interiors, creating minimal annular space.
Grout Material Selection
Choosing appropriate grout materials affects structural performance, placement procedures, and long-term durability.
Cementitious grout provides high compressive strength for structural applications. Traditional cement-based grouts mixed with sand and additives create dense, durable fills suitable for large annular spaces and applications requiring maximum load-bearing capacity. Cementitious grouts work well for gravity sewer lines and non-pressure applications where strength is prioritized over flexibility.
Cellular grout offers lightweight, flowable properties for complex geometries. Made from cement, water, and foaming agents, cellular grout flows easily through long distances and fills irregular spaces without excessive weight loading existing structures. Its lower density compared to conventional grout reduces soil disturbance and foundation loads while providing adequate structural support for many applications.
Polyurethane grout delivers rapid curing and flexibility. Chemical grouts react quickly, allowing faster project completion while accommodating pipeline movement from temperature changes or ground shifts. Polyurethane grouting works particularly well for pressure pipelines and applications requiring waterproofing along with structural support.
Modified grouts incorporate additives enhancing specific properties. Expansive agents compensate for shrinkage, accelerators speed curing for urgent projects, retarders extend working time for complex installations, and waterproofing additives improve moisture resistance.
Grout Type | Compressive Strength | Density | Flow Characteristics | Best Applications |
Cementitious | 2,000-4,000+ psi | 100-140 pcf | Moderate, requires pumping | Large pipes, high loads, gravity systems |
Cellular | 100-400 psi | 25-50 pcf | Excellent, self-leveling | Long distances, irregular spaces, weight-sensitive |
Polyurethane | 50-200 psi | 2-8 pcf | Excellent, expands | Pressure pipes, waterproofing, rapid cure |
Modified Cementitious | Variable | 90-130 pcf | Enhanced by additives | Specific performance requirements |
Injection Procedures and Techniques
Proper injection procedures ensure complete annular space filling without defects compromising rehabilitation effectiveness.
Injection point placement determines coverage. Spacing injection ports along pipeline lengths allows systematic filling of annular spaces, with closer spacing required for longer runs or complex geometries. Vertical pipelines may require injection at multiple elevations preventing air entrapment.
Pressure control prevents damage while ensuring complete filling. Injection pressures must overcome gravity and friction resistance moving grout through annular spaces without exceeding host pipe or liner capacity. Monitoring injection pressure throughout the process verifies proper filling and detects blockages or leaks requiring attention.
Sequential injection staging manages large projects. Complex rehabilitation projects benefit from staged injection approaches filling specific pipeline sections completely before advancing to adjacent areas. This prevents grout setting before reaching distant sections while managing material quantities and working time constraints.
Vent management eliminates trapped air. Strategic vent placement at high points and pipe ends allows air displacement as grout fills annular spaces. Monitoring vent ports for grout appearance confirms complete filling before sealing openings.
Flow verification confirms complete coverage. Visual observation of grout reaching all vent points, pressure readings stabilizing at expected levels, and calculated material consumption matching annular space volumes verify successful injection without voids.
Quality Control and Verification
Comprehensive quality assurance protects rehabilitation investment and ensures long-term performance.
Quality control measures include:
- Pre-injection testing of grout properties including flow, setting time, and strength
- Real-time monitoring of injection pressures and flow rates during placement
- Documentation of material quantities and injection locations for project records
- Post-injection inspection through access points when feasible
- Curing time compliance before returning pipeline to service
- Long-term monitoring for settlement or performance issues
Applications and Infrastructure Types
Annular grouting restores diverse pipeline systems across municipal, industrial, and utility infrastructure.
Municipal Sewer Systems
Aging sewer infrastructure benefits significantly from annular grouting rehabilitation minimizing disruption to communities while restoring system integrity.
Gravity sewer rehabilitation addresses infiltration and exfiltration. Annular grouting behind liners in gravity sewers eliminates groundwater infiltration that overloads treatment plants while preventing sewage exfiltration contaminating groundwater and soils. Sealed, stabilized systems reduce treatment costs and environmental risks.
Force main restoration maintains pressure pipeline integrity. Pressurized sewer force mains transporting wastewater to treatment plants require structural support from annular grouting preventing liner collapse under external loads while stopping corrosion of deteriorated steel or concrete host pipes.
Manhole connection sealing prevents infiltration at structure interfaces. Grouting annular spaces where liner pipes penetrate manhole walls creates watertight seals preventing groundwater entry at these historically problematic locations.
Large diameter trunk sewers benefit from minimal excavation. Major interceptor sewers buried deeply beneath urban areas present extreme replacement challenges. Annular grouting enables rehabilitation from internal access avoiding massive excavation projects disrupting city operations.
Water Distribution Systems
Drinking water pipelines require careful rehabilitation protecting public health while maintaining service reliability.
Pressure pipe restoration maintains system capacity. Water mains operate under continuous pressure requiring structural support from annular grouting preventing liner deformation that would reduce flow capacity. Complete void filling also prevents water quality issues from stagnant water trapped in annular spaces.
Leak elimination conserves treated water resources. Grouting behind liners seals host pipe cracks and joint separations, recovering water previously lost through leakage while maintaining system pressure for reliable service and fire protection.
Corrosion protection extends service life. Encapsulating corroded iron, steel, or concrete pipes in grout stops deterioration processes, providing decades of additional service from pipelines that would otherwise require complete replacement.
Cross-connection prevention protects water quality. Proper annular grouting eliminates pathways for contaminated groundwater entry into drinking water distribution systems, maintaining the sanitary integrity essential for public health protection.
Industrial and Process Pipelines
Manufacturing facilities and industrial operations rely on process pipelines requiring reliable rehabilitation approaches.
Industrial applications include:
- Chemical process lines handling corrosive materials requiring leak-free operation
- Cooling water systems distributing water throughout manufacturing facilities
- Steam condensate returns collecting condensate from heating and process applications
- Waste conveyance systems transporting industrial process waste to treatment
- Product pipelines moving manufactured goods within production facilities
Minimal downtime requirements favor rapid rehabilitation. Industrial operations cannot afford extended shutdowns for pipeline replacement. Annular grouting allows faster restoration minimizing production losses while providing reliable long-term performance.
Specialized material resistance addresses chemical exposure. Grout materials selected for industrial applications must resist specific chemicals in process streams, requiring expertise in material selection and compatibility.
Storm Water and Drainage Systems
Storm sewer and drainage infrastructure protects communities from flooding while managing water quality.
Storm sewer rehabilitation prevents soil erosion and surface collapse. Aging storm sewers develop cracks and joint separations allowing surrounding soils to migrate into pipe interiors, creating voids that cause sinkholes and surface depressions. Annular grouting stabilizes these systems preventing dangerous collapses.
Culvert restoration maintains transportation infrastructure. Highway culverts beneath roads and railways experience deterioration threatening roadway stability. Annular grouting behind liners restores structural integrity protecting transportation infrastructure investments.
Outfall stabilization prevents erosion at discharge points. Storm water outfalls face turbulent flow and wave action causing structural damage. Rehabilitation with annular grouting provides stability while sealing leaks that accelerate deterioration.
Benefits and Value Proposition
Annular grouting delivers multiple advantages over alternative rehabilitation approaches and complete pipeline replacement.
Cost Comparison with Replacement
Economic analysis consistently favors annular grouting rehabilitation over complete pipeline replacement for eligible infrastructure.
Direct cost savings typically range from 40-70% compared to replacement. Annular grouting eliminates excavation costs, surface restoration expenses, traffic management requirements, and temporary service provisions that make replacement extremely expensive in urban environments.
Indirect cost avoidance adds substantial value. Minimizing traffic disruption prevents economic losses from business access restrictions, commuter delays, and reduced property values during construction. Environmental restoration avoids tree removal, landscape damage, and habitat disruption requiring costly remediation.
Accelerated project completion reduces time-related costs. Annular grouting projects typically complete in days or weeks compared to months or years for replacement projects, reducing engineering oversight costs, traffic control duration, and community inconvenience.
Cost Factor | Pipeline Replacement | Annular Grouting Rehabilitation | Savings |
Excavation and Restoration | $150-400 per linear foot | $0-50 per linear foot | 60-90% |
Pipeline Materials and Installation | $200-600 per linear foot | $60-180 per linear foot | 40-70% |
Traffic Control and Management | $20-80 per linear foot | $5-20 per linear foot | 60-75% |
Engineering and Inspection | $30-100 per linear foot | $15-40 per linear foot | 40-60% |
Total Project Cost | $400-1,200 per linear foot | $140-400 per linear foot | 50-70% |
Environmental and Community Benefits
Trenchless rehabilitation through annular grouting minimizes environmental disruption and community impacts.
Reduced excavation preserves existing landscapes. Mature trees, established vegetation, and developed properties remain undisturbed when rehabilitation proceeds from access points rather than continuous trenching required for replacement.
Decreased traffic disruption maintains community mobility. Limited access point locations allow traffic flow continuation on most road sections during rehabilitation compared to complete closures required for pipeline replacement.
Lower carbon footprint supports sustainability goals. Avoiding manufacture and transportation of new pipe materials while eliminating heavy equipment operation for excavation and backfilling significantly reduces greenhouse gas emissions from rehabilitation projects.
Groundwater protection prevents contamination. Sealing deteriorated pipelines through annular grouting eliminates ongoing leakage of sewage or chemicals into groundwater while preventing contaminated groundwater infiltration into water supply systems.
Performance and Reliability
Properly executed annular grouting rehabilitation provides reliable long-term performance comparable to new pipeline installation.
Service life extension typically provides 20-30+ years of additional pipeline operation. Comprehensive rehabilitation addressing structural deterioration, leakage, and surrounding soil conditions essentially creates new composite pipeline systems rivaling new construction service life expectations.
Structural capacity meets or exceeds original design specifications. Composite pipe-grout-liner systems distribute loads effectively, with proper grout selection and application providing structural strength comparable to original pipeline installations.
Flow capacity maintains or improves hydraulic performance. Smooth liner interiors often reduce friction losses compared to deteriorated host pipes, maintaining or increasing flow capacity despite slightly reduced internal diameters from liner installation.
Reduced maintenance lowers ongoing operational costs. Sealed, structurally sound pipelines require less cleaning, fewer emergency repairs, and reduced inspection frequency compared to deteriorating infrastructure requiring constant attention.
Technical Considerations and Challenges
Successful annular grouting requires addressing technical challenges through proper planning and execution.
Access and Working Space Limitations
Urban pipeline rehabilitation faces space constraints affecting equipment placement and operation.
Limited surface access requires compact equipment. Dense urban areas provide minimal space for staging grouting equipment, requiring portable systems that fit in confined work areas while delivering necessary injection pressures and flow rates.
Traffic management affects project logistics. Maintaining traffic flow during rehabilitation limits equipment positioning options and working hours, requiring careful planning to complete work within available time windows.
Underground utility congestion complicates operations. Existing utilities near rehabilitation sites restrict excavation for access points and influence pipeline protection procedures preventing damage to adjacent infrastructure.
Private property constraints limit access options. Pipelines beneath private properties require access agreements and careful work procedures respecting property rights while completing necessary rehabilitation.
Annular Space Geometry Challenges
Variable annular space dimensions and configurations affect grout placement and material requirements.
Irregular host pipe geometry from deterioration creates variable annular space dimensions. Corroded pipes, collapsed sections, or geometric distortions create narrow restrictions and wider areas requiring careful grout selection and injection staging ensuring complete filling.
Offset liner positioning results from installation procedures. Liners may not center perfectly within host pipes, creating thin annular spaces at some locations and wider gaps elsewhere requiring injection strategies accommodating these variations.
Longitudinal space changes require flexible approaches. Annular space dimensions typically vary along pipeline lengths due to host pipe condition variations, requiring adjusted injection parameters and possibly different grout formulations for various sections.
Connection transitions present filling challenges. Joints between lined sections, manhole penetrations, and service connections create complex geometries requiring specialized injection procedures ensuring complete grout coverage.
Material and Performance Variables
Grout performance depends on proper material selection and application for specific project conditions.
Critical variables include:
- Temperature effects on grout flow, reaction rates, and ultimate properties
- Groundwater presence affecting mixing, placement, and curing
- Chemical compatibility between grout materials and transported fluids
- Curing time requirements based on material selection and service conditions
- Long-term durability under specific loading and environmental exposure
Professional Application Requirements
Achieving reliable annular grouting results requires professional expertise, specialized equipment, and comprehensive quality assurance.
Contractor Qualifications and Experience
Pipeline rehabilitation demands specific capabilities distinguishing professional contractors from general construction firms.
Pipeline rehabilitation expertise demonstrates understanding of host pipe conditions, liner systems, and grouting requirements. Contractors should document previous annular grouting projects with verifiable references from utility owners confirming successful outcomes.
Material knowledge ensures appropriate grout selection. Professional contractors understand properties of various grout materials, their applications, limitations, and compatibility with different pipeline systems and service conditions.
Equipment capabilities affect project quality and efficiency. Specialized grouting equipment including volumetric mixers, high-pressure pumps, and monitoring systems indicate contractor investment in quality and ability to handle challenging projects.
Quality assurance programs protect project owners. Comprehensive procedures for material testing, injection monitoring, and performance verification demonstrate contractor commitment to delivering reliable results meeting project specifications.
Specialized Equipment and Tools
Annular grouting requires specialized equipment delivering reliable material placement under controlled conditions.
Grout mixing systems ensure consistent material properties. Volumetric mixers maintaining precise ratios of grout components throughout projects prevent strength variations or placement problems from inconsistent materials.
High-pressure injection pumps move grout through long pipeline sections and overcome friction resistance in narrow annular spaces. Variable speed pumps allow pressure and flow rate adjustment matching specific project requirements.
Monitoring instrumentation tracks critical parameters. Pressure gauges, flow meters, and volume totalizers verify proper injection while detecting problems requiring immediate attention.
Access equipment enables work in challenging locations. Portable generators, compact staging areas, and specialized tools for creating injection ports allow operations in constrained urban environments.
Quality Documentation and Verification
Comprehensive documentation protects both contractors and owners while providing records supporting warranty claims and future maintenance planning.
Documentation requirements include:
- Pre-rehabilitation condition assessment with video documentation
- Material test results confirming grout properties meet specifications
- Injection records tracking volumes, pressures, and locations
- Curing time logs ensuring adequate strength development before service restoration
- Post-rehabilitation inspection results verifying successful completion
- As-built drawings showing injection point locations and grout types used
Conclusion
Annular grouting effectively restores failing pipelines by filling gaps between damaged host pipes and protective liners with specialized grout creating composite structures that reinforce integrity, seal leaks, and stabilize surrounding soils. This proven rehabilitation method costs 40-70% less than complete pipeline replacement while minimizing excavation, reducing environmental disruption, and providing 20-30+ years of additional service life.
Success requires professional expertise in pipeline assessment, liner installation, material selection, injection procedures, and quality control. Proper application creates durable, reliable pipeline systems serving communities and industries without the extensive costs and disruptions associated with replacement.
